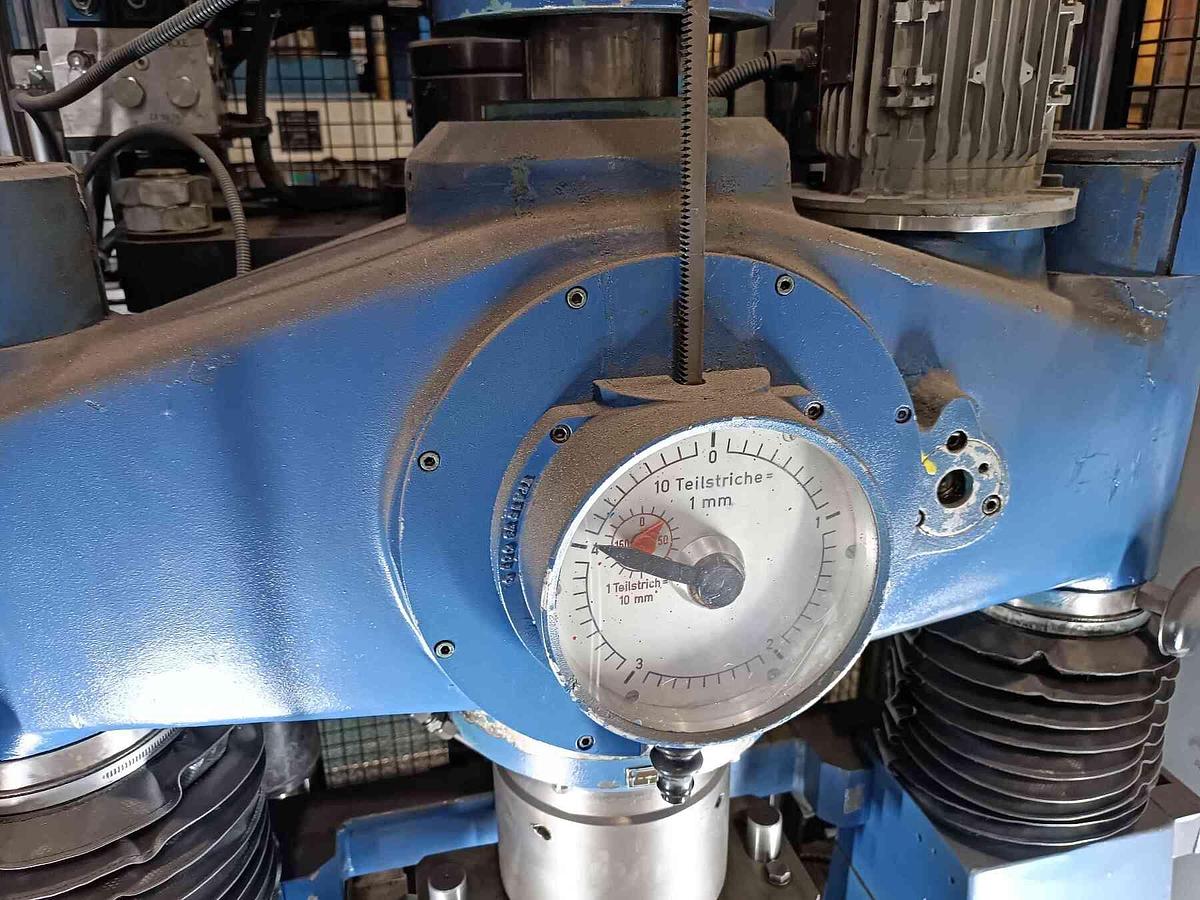

DORST DK100

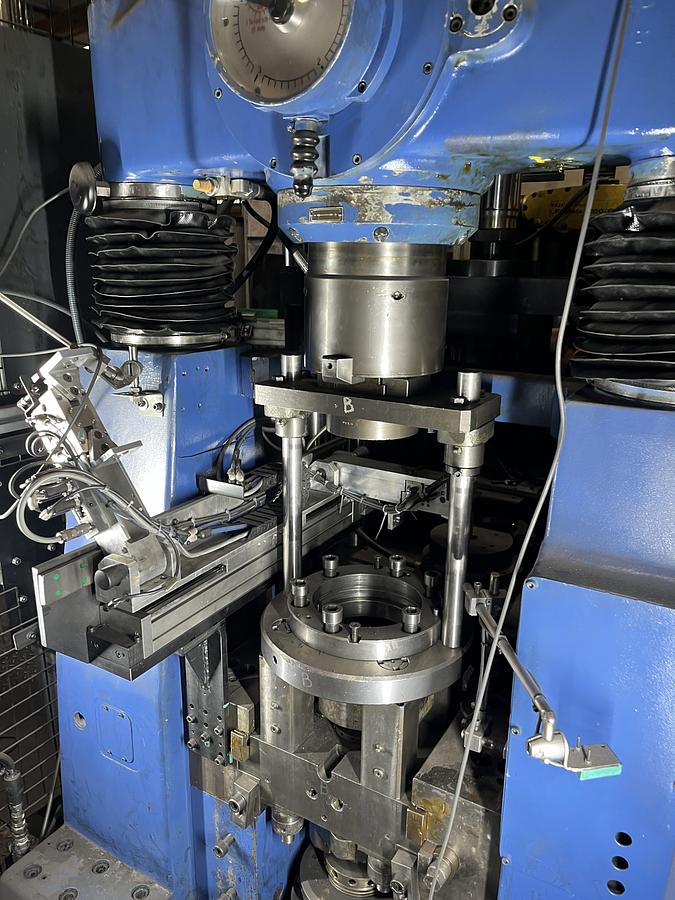

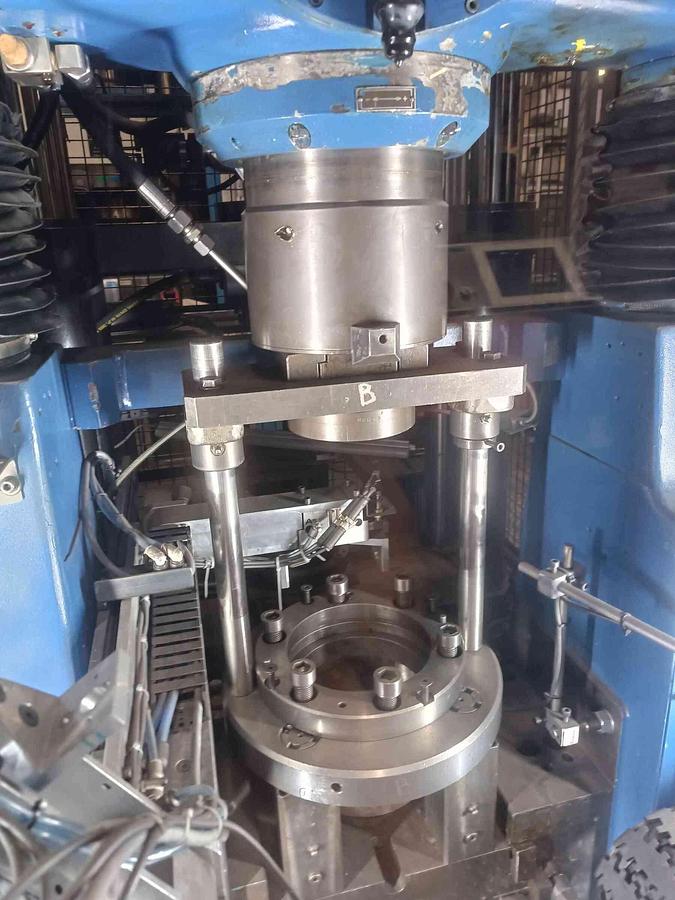

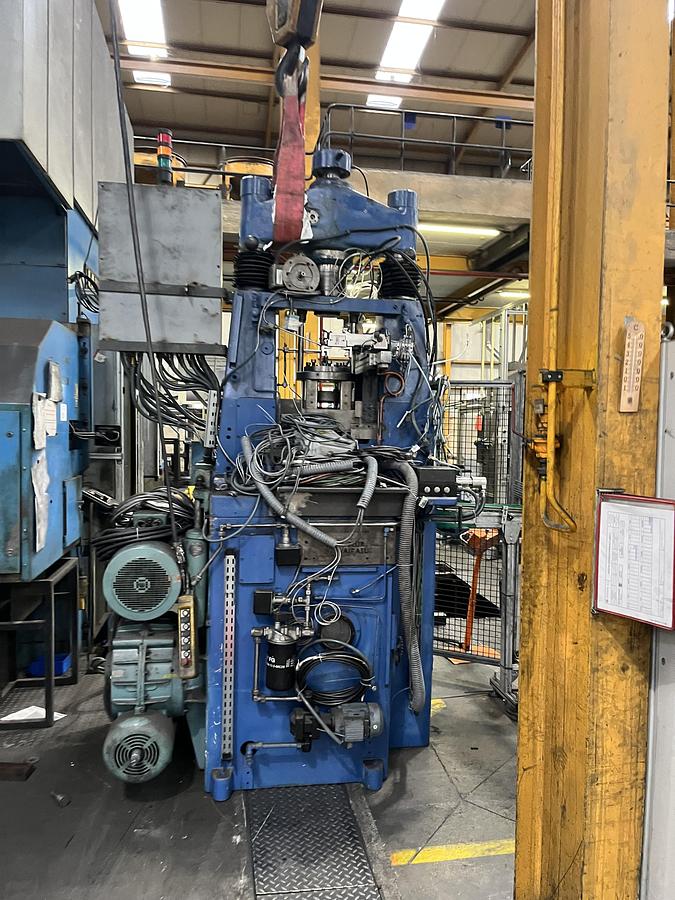

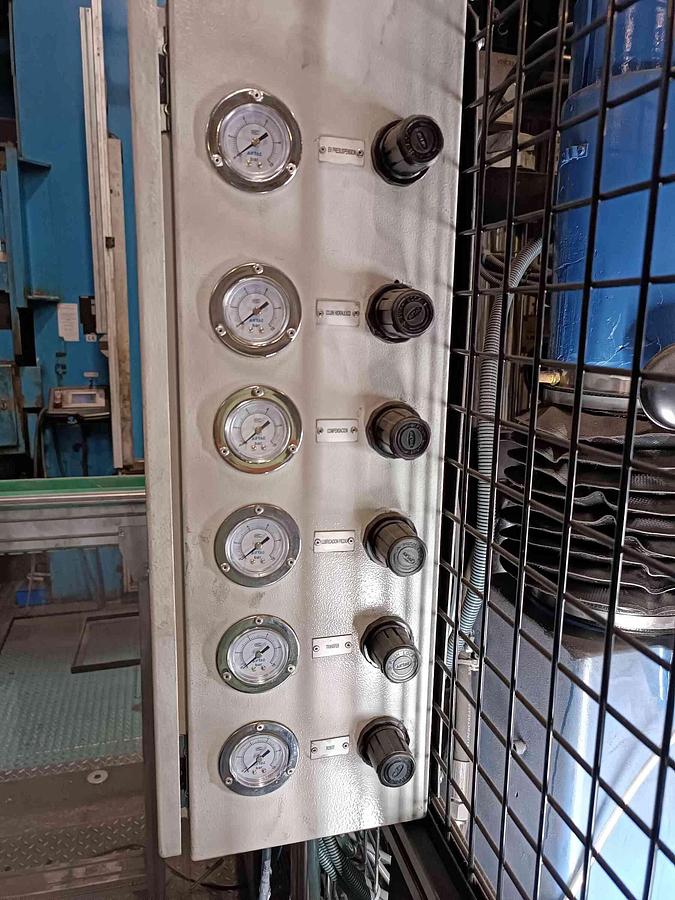

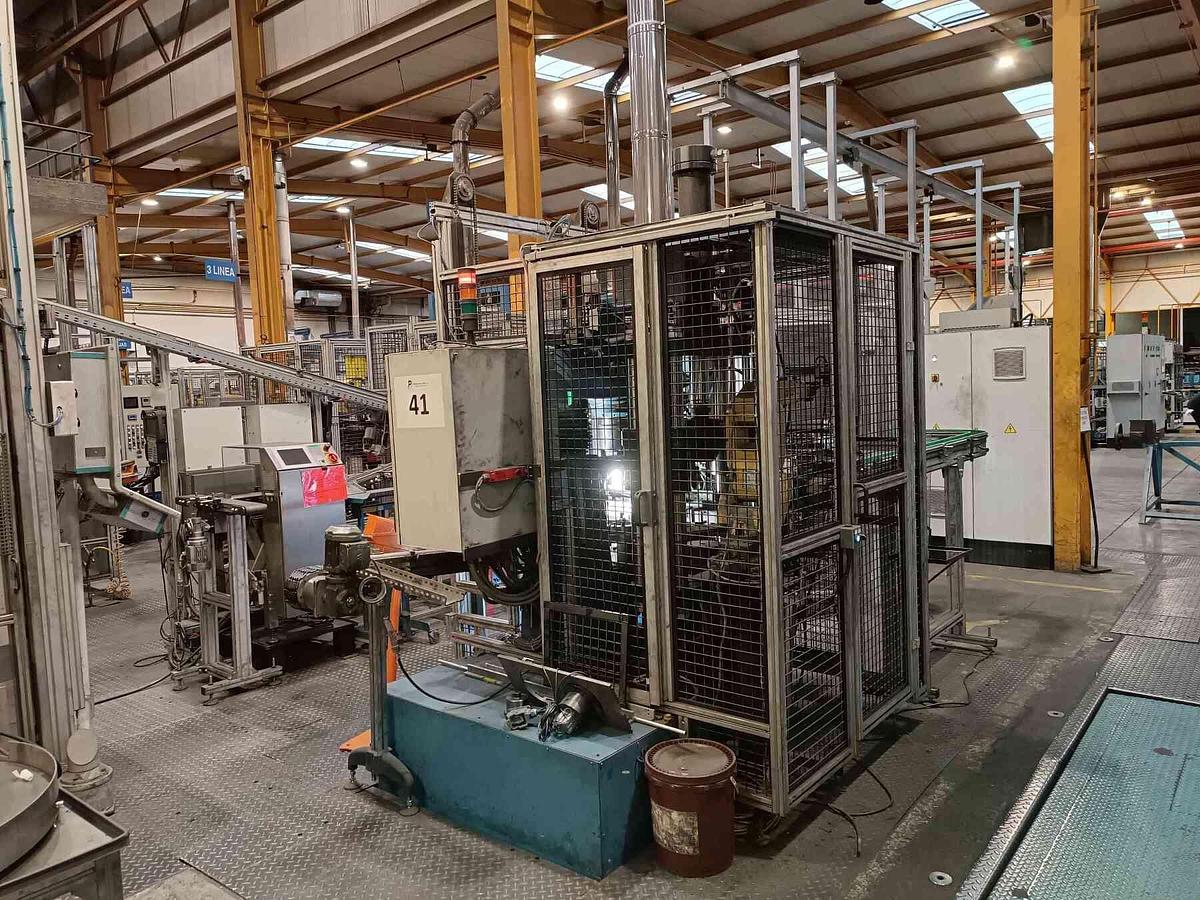

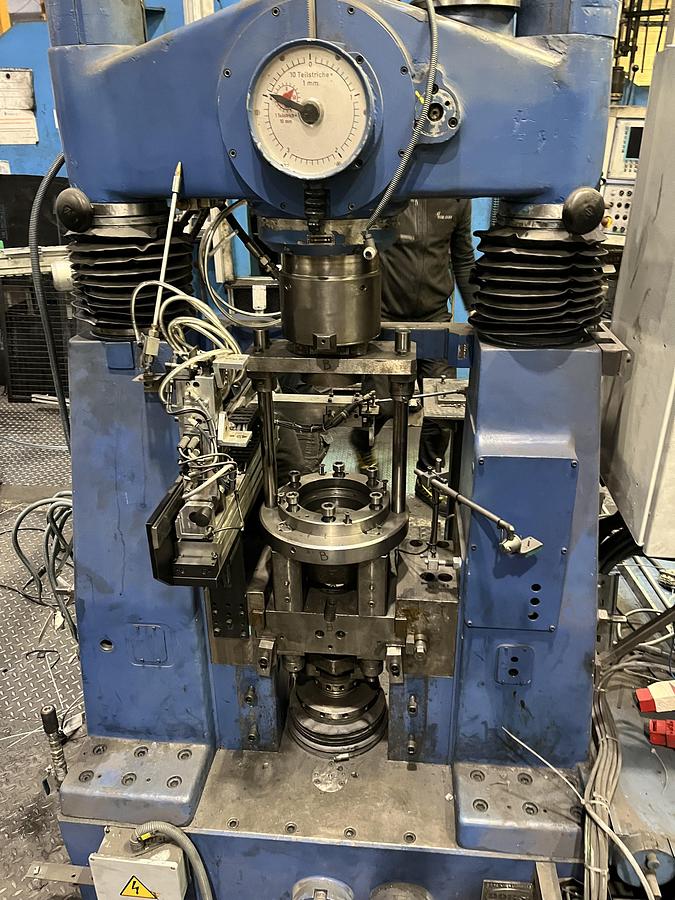

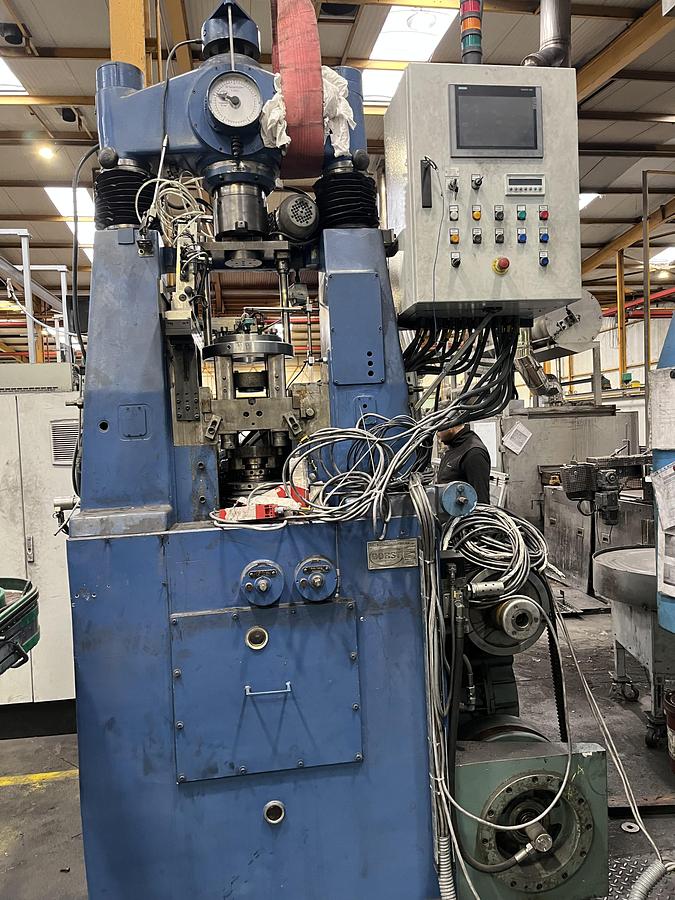

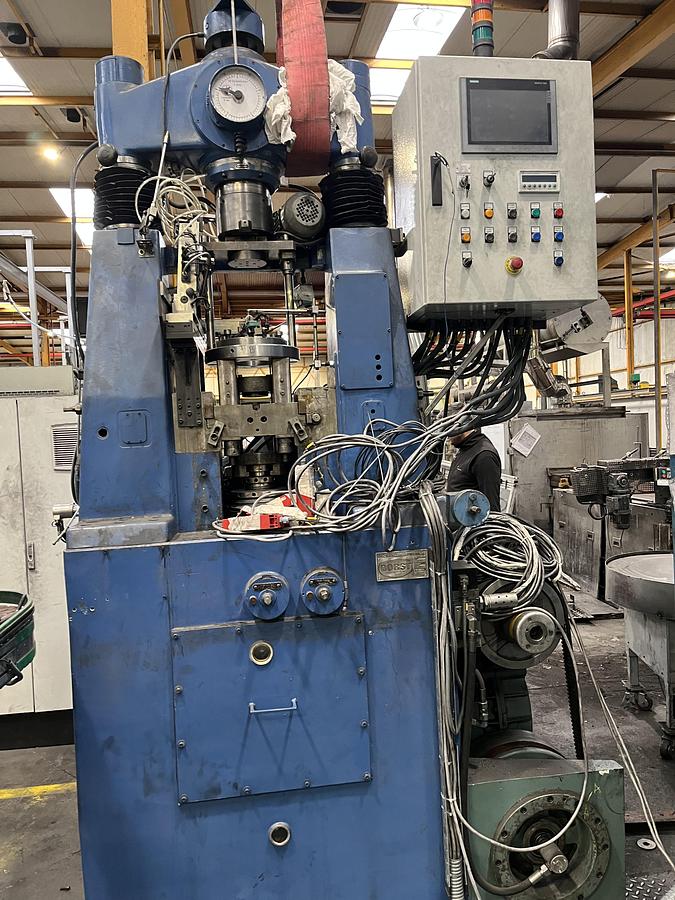

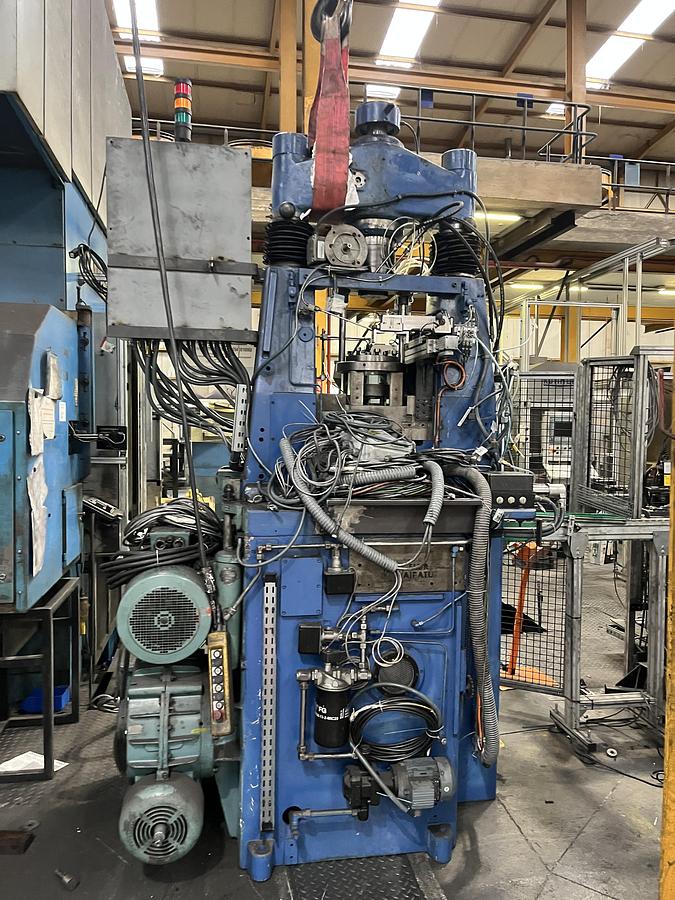

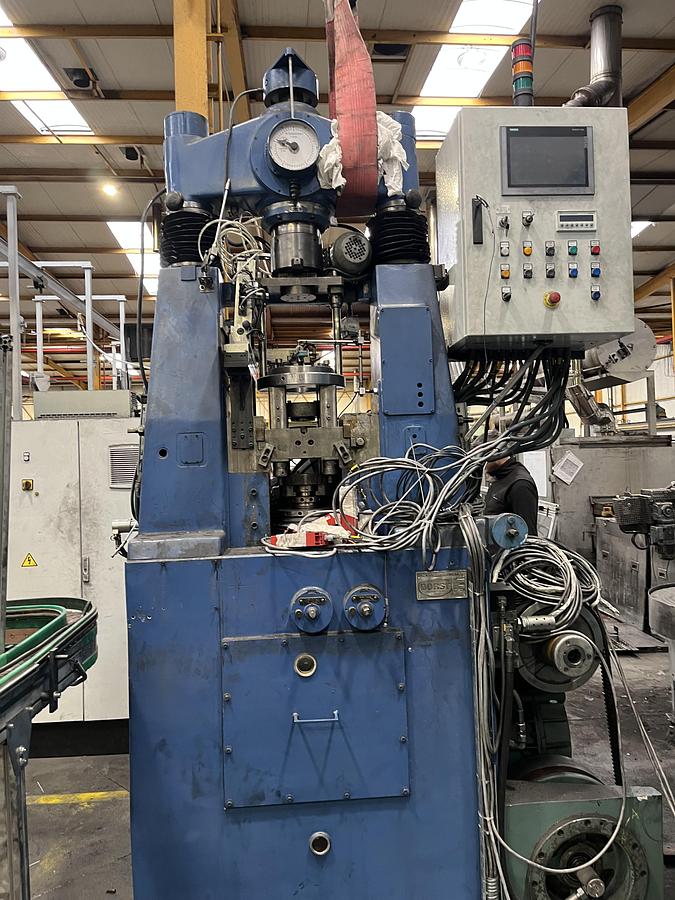

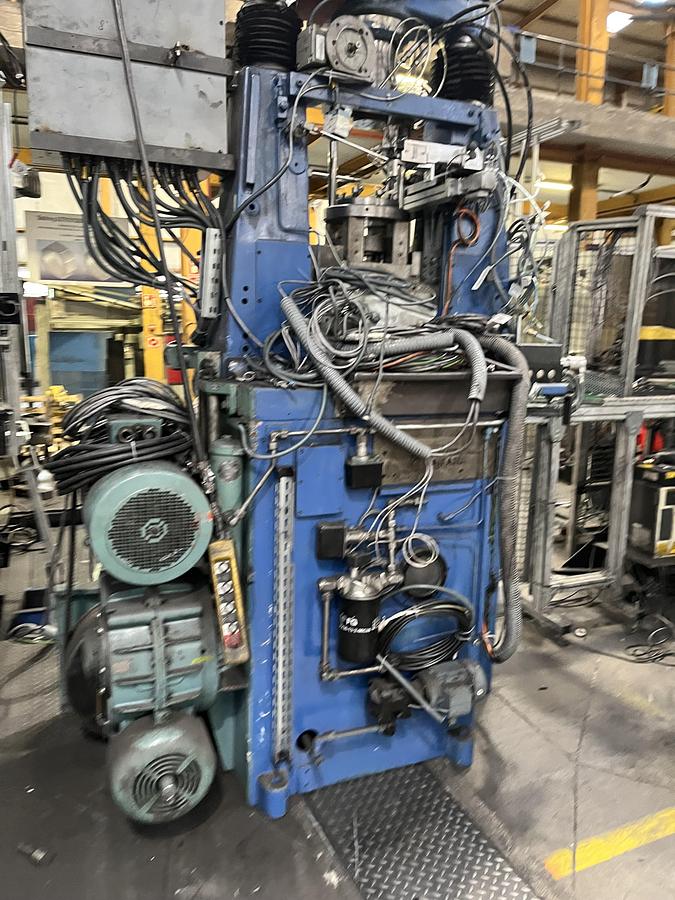

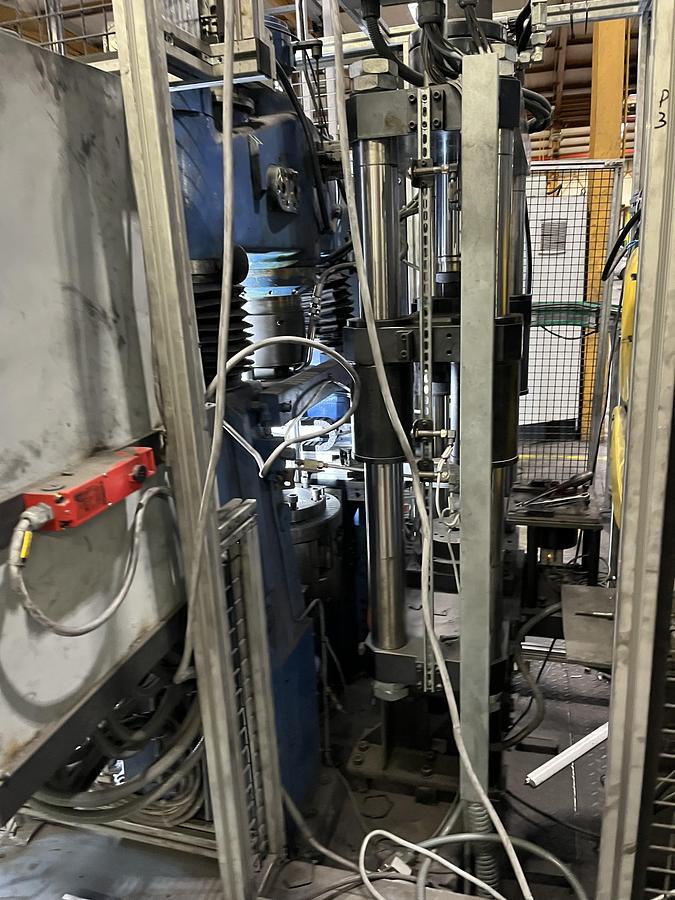

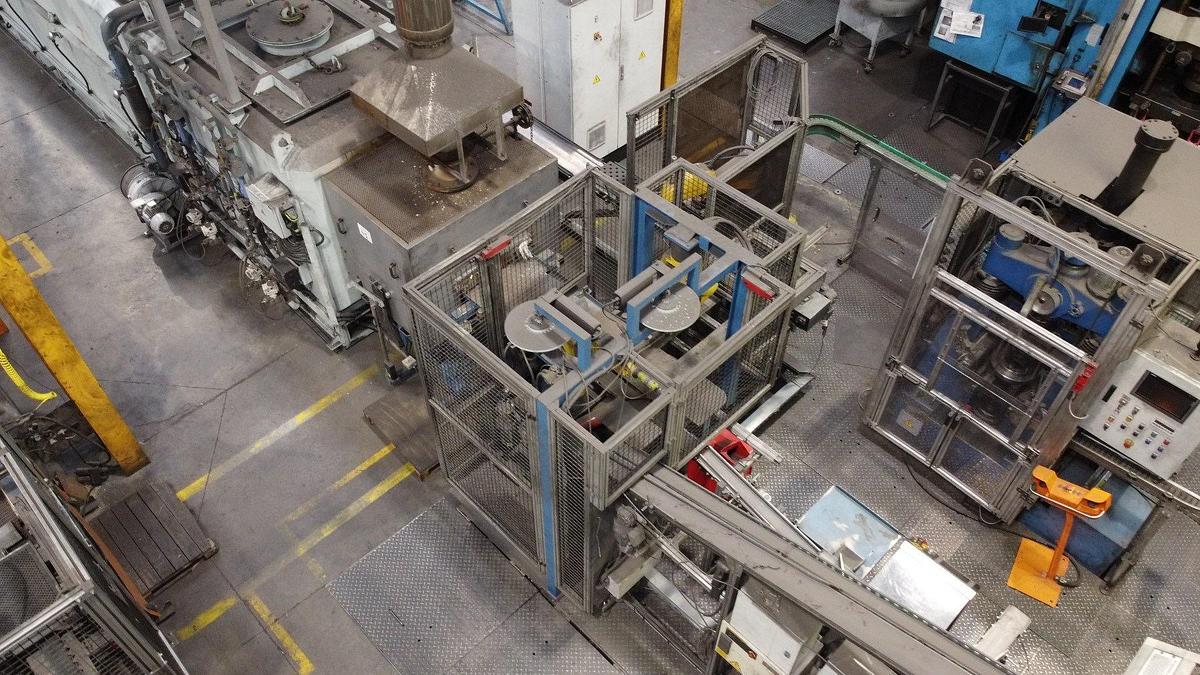

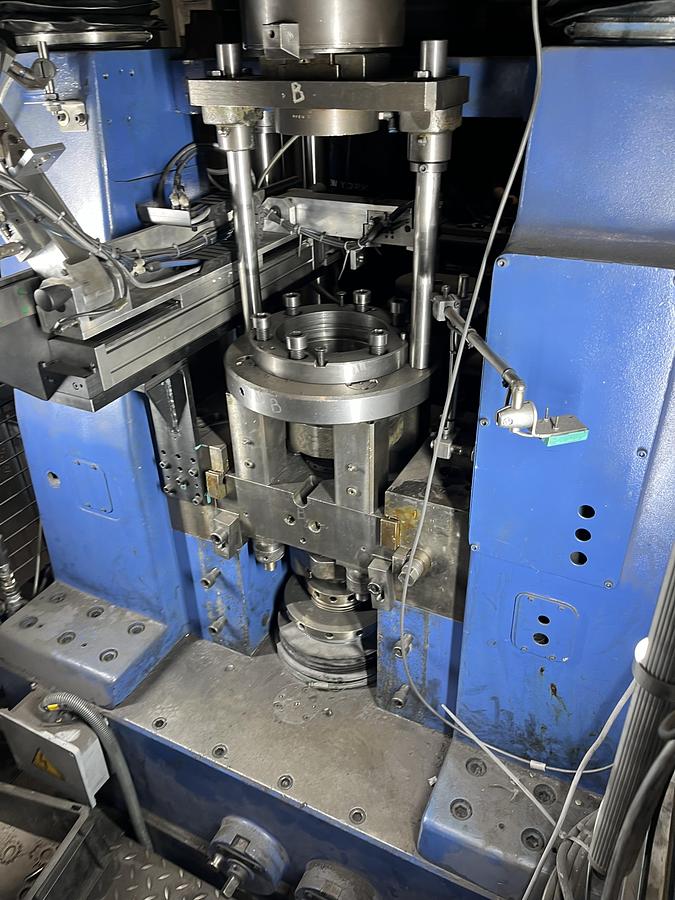

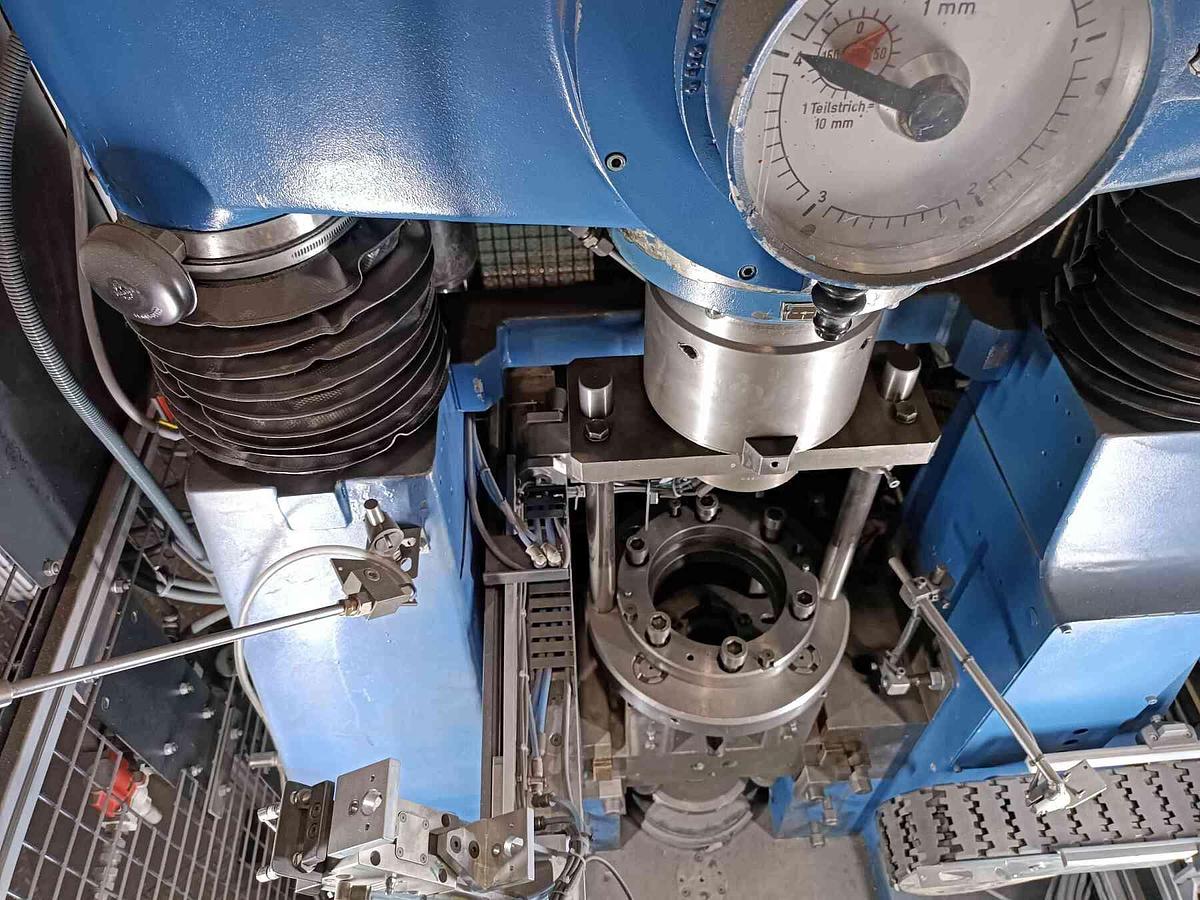

The used DORST DK 100 is a robust sizing and powder compaction press designed for high-performance industrial applications. Capable of a maximum pressing force of 1000 Kn and a withdrawal force of 500 Kn, this machine provides powerful and reliable operation. It accommodates a filling height of up to 110 mm with a pressing travel of 50 mm, ensuring versatility for various compaction tasks. The upper punch stroke is 140 mm, with adjustable travel up to 75 mm, allowing for precise control over pressing operations. This model offers between 5 and 22 strokes per minute, giving you flexibility in production rates. The die return force is 100 Kn, while the supporting force in the pressing position reaches 300 Kn. Pneumatic operations are supported with an upper punch preload of up to 30 mm and compressed air consumption of approximately 80 liters per minute. It requires a total connected load of about 23.0 kW, reflecting its efficient energy usage. The DORST DK 100 measures approximately 2450 mm in width, 2200 mm in depth, and 3650 mm in height, weighing around 6700 kg. It includes an 80-liter gear oil capacity for efficient operation. Despite its power, the press maintains a sound level of 78 dB (A), providing a relatively quiet workplace environment. These specifications make it suitable for a range of industrial environments requiring precise and heavy-duty powder compaction capabilities.
