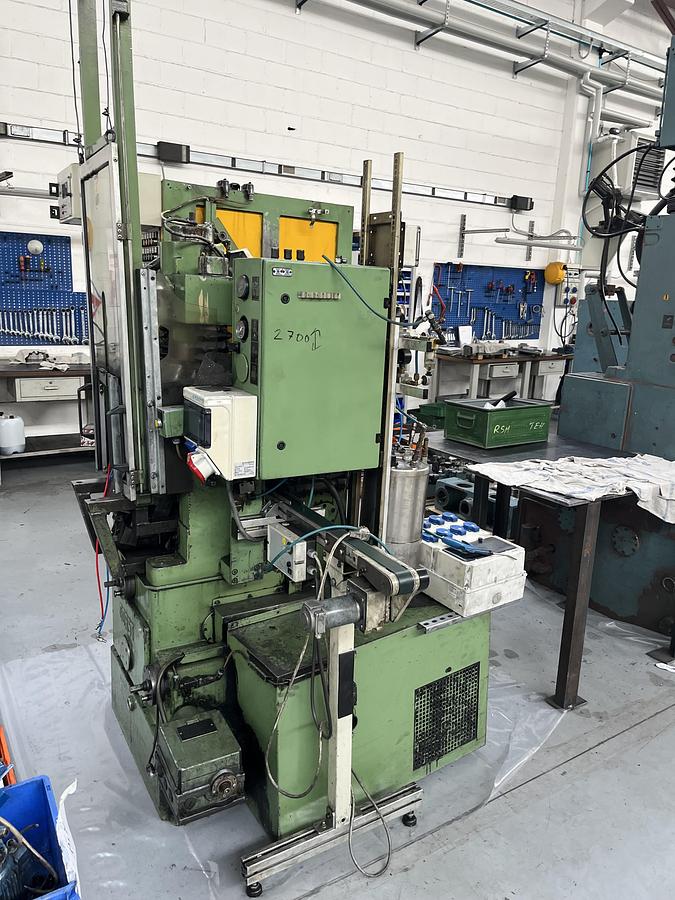

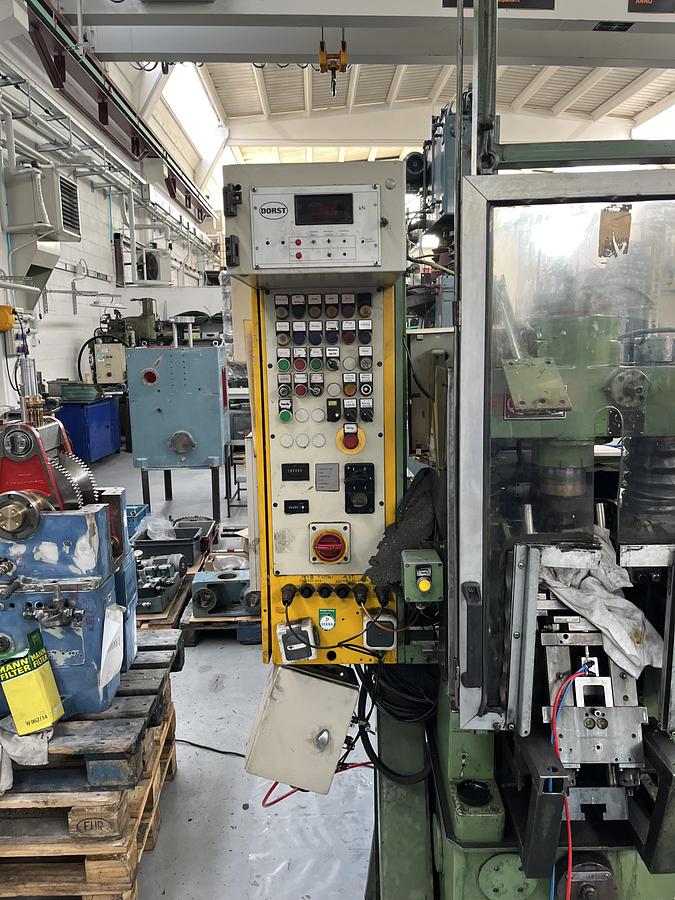

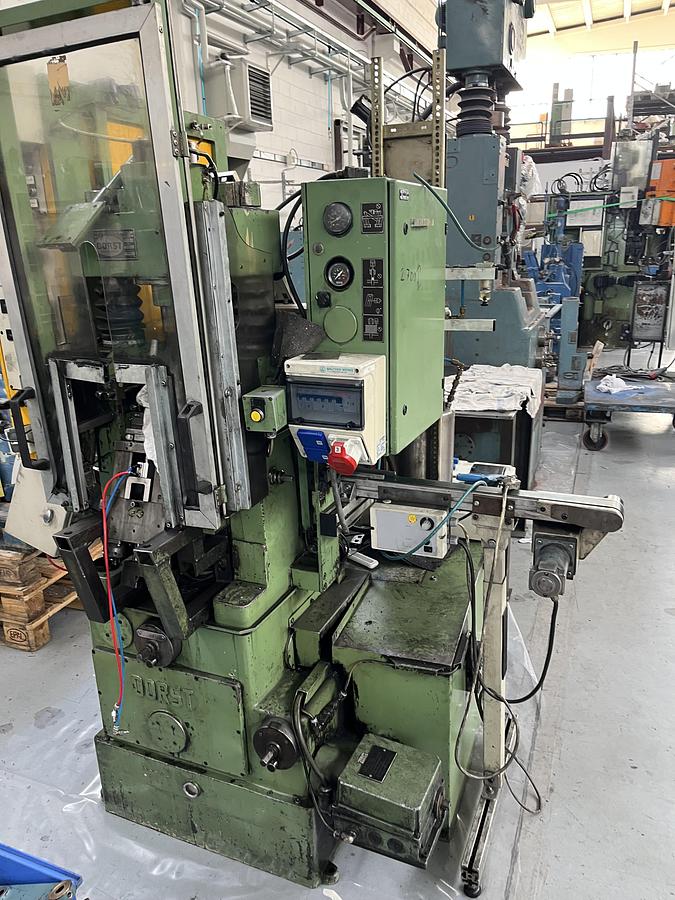

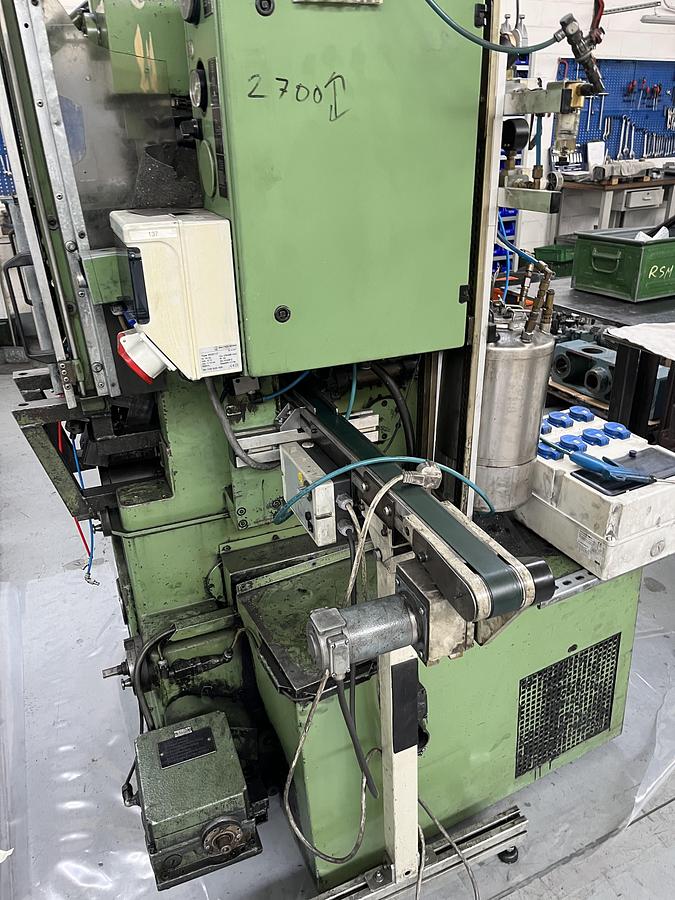

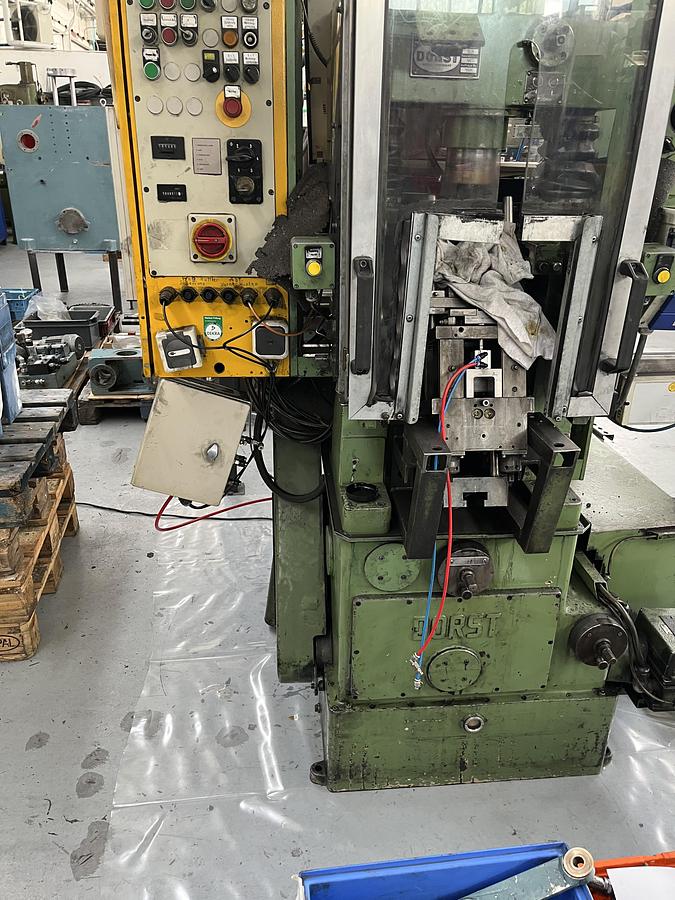

DORST DK 15

The DORST DK 15 Sizing and Powder Compaction Press is a used but reliable machine designed for efficient powder compaction tasks. It boasts a maximum pressing force of 150 Kn and a withdrawal force of up to 50 Kn, ensuring robust performance for various industrial applications. The press is capable of handling a maximum filling height of 40 mm and a pressing travel of up to 30 mm, while its upper punch stroke is 60 mm. This model operates with a range of 10 to 70 strokes per minute, allowing for adaptable production speeds. The machine features a die return force of 10 Kn and a supporting force in the pressing position of up to 40 Kn. Its upper punch can be adjusted within a travel limit of 15 mm, providing flexibility in operations. For pneumatic operations, the upper punch preload is up to 10 mm, and the machine consumes approximately 60 liters of compressed air per minute. The DORST DK 15 maintains a workplace-related sound level of 78 dB (A), ensuring a relatively quiet working environment. With a compact footprint, the DORST DK 15 measures approximately 1300 mm in width and depth, and 1850 mm in height, making it suitable for various industrial settings. It weighs about 1300 kg and requires a total connected load of approximately 3.0 kW. The press also includes a 20-liter gear oil capacity in its housing, optimizing its operational efficiency and longevity.
