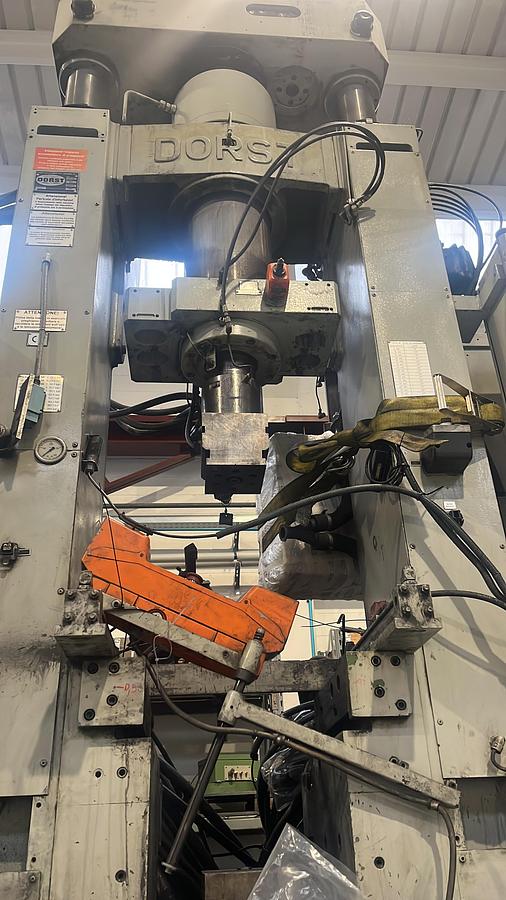

Dorst TPA 200

The Dorst TPA 200/2 is a reliable used powder compaction press designed for high-performance applications. With a maximum pressing force of 2000 kN and withdrawal force up to 1500 kN, this machine offers robust power for pressing operations. It features a supporting force in the pressing position of 1200 kN and a die return force of 50 kN, ensuring efficient cycle times and consistent output. The upper punch can achieve a stroke of 220 mm with an adjustable travel of 200 mm, operating at a rate of 5 to 18 strokes per minute. The press accommodates a maximum filling height of 180 mm and provides pressing and withdrawal travels of 90 mm each. For optimal performance, the upper punch has a pneumatic preload of up to 60 mm and utilizes a compressed air supply with an approximate consumption of 140 l/min. With a total connected load of around 26.0 kW, the Dorst TPA 200/2 is ergonomically designed, measuring approximately 2350 mm in width, 3500 mm in depth, and 5900 mm in height. The press housing features a 260-liter capacity for gear oil, and it operates at a workplace-related sound level of 78 dB(A). Weighing approximately 19,900 kg, this compaction press is suitable for various industrial applications requiring precision and durability.
