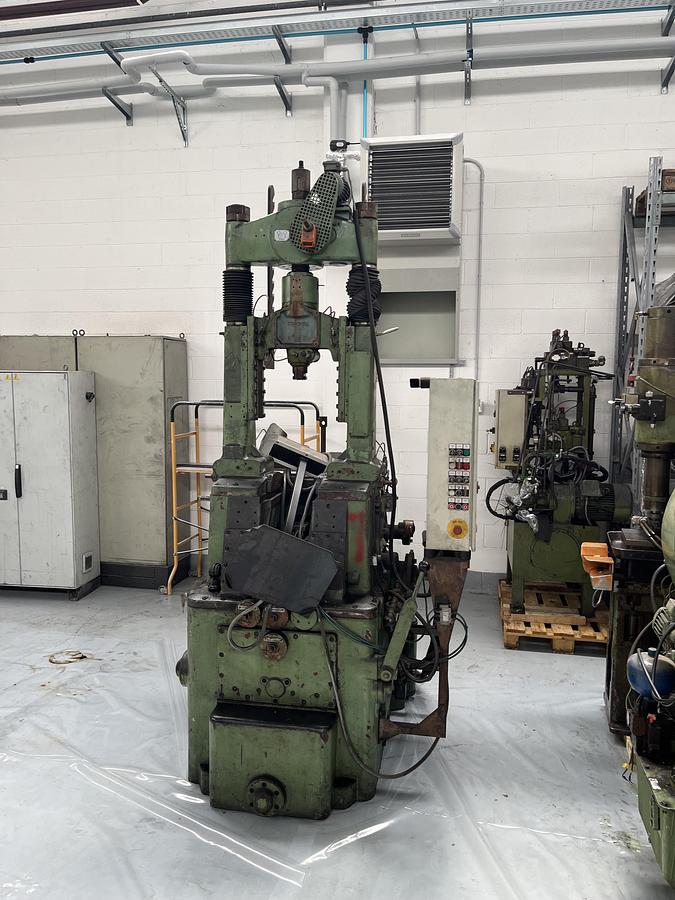

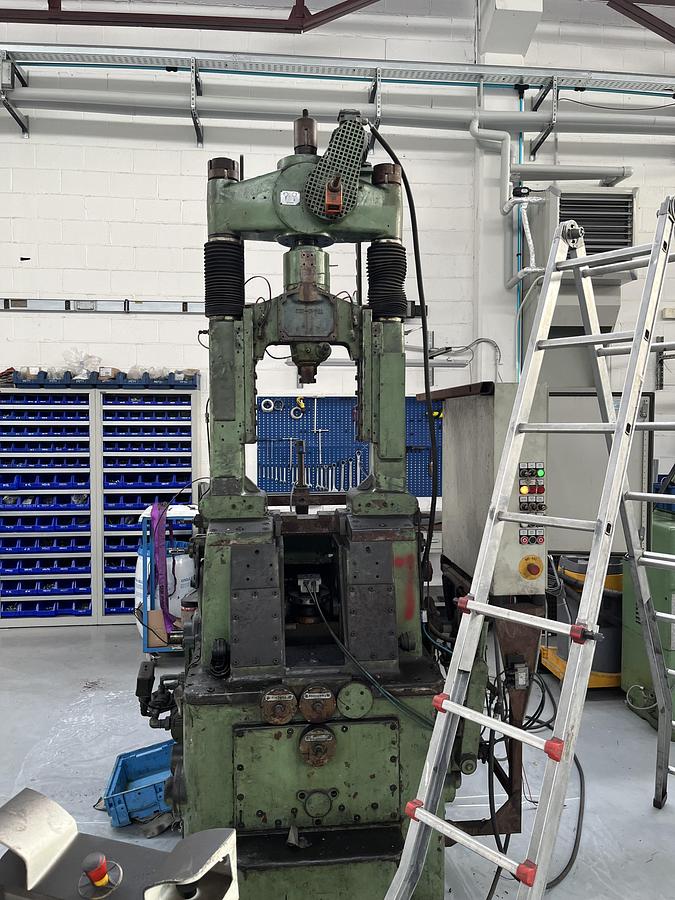

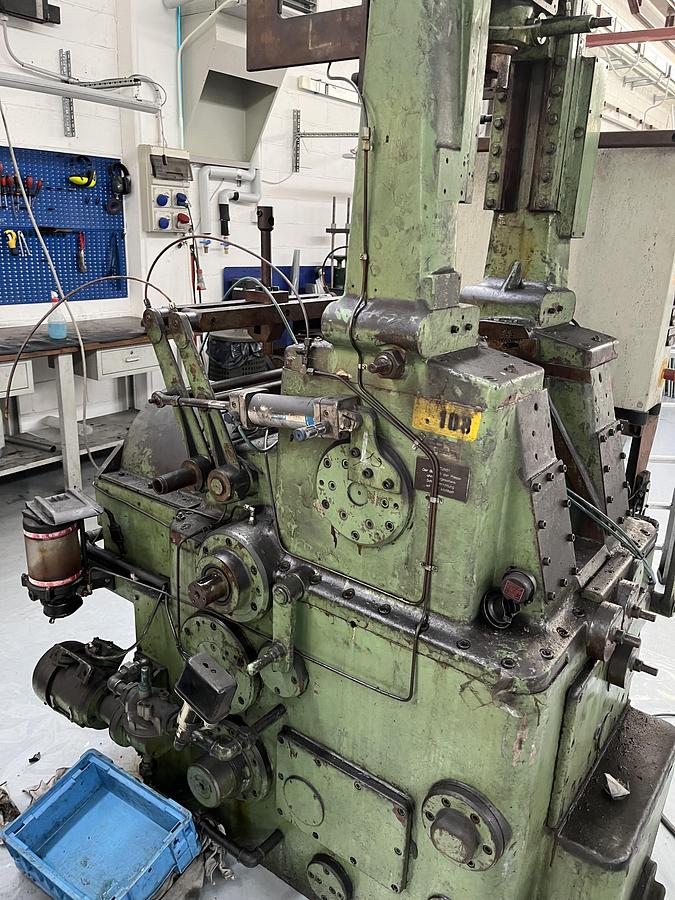

Dorst TPA 45

Mechanical Dorst TPA 45

Pressing Force max. 450 Kn

Withdrawal force max. 250 Kn

Supporting force in pressing position max. 130 Kn

Die return force max. 60 Kn

Upper punch stroke 120 mm

Upper punch adjusting travel 70 mm

Number of strokes 6-22 1/min

Filling height max. 120 mm

Pressing travel max. 60 mm

Withdrawal travel max. 60 mm

Top pressing travel max 6 mm

Upper punch pneumatic preload max. 30 mm

Compressed air supply , Air consumption , Intake air aprox. 70 l/min

Total connected load aprox. 14,0 Kw

Press dimensions:

Width aprox. 1550 mm

Depth aprox. 1650 mm

Height aprox. 2200 mm

Weight of the press aprox. 3900 Kg

Oil filling quantity :

Press housing 45 l (gear oil)

Workplace-related sound 79 dB (A)
