DORST TPA 100/3

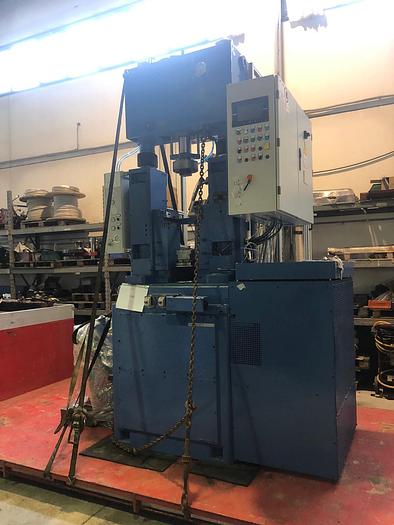

Used mechanical DORST TPA 100/3 completely refurbished

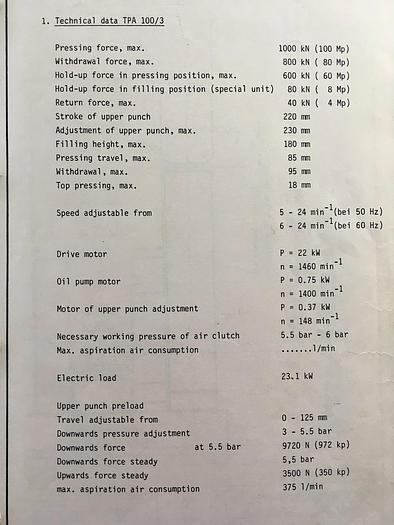

Pressing Force max. 1000 Kn

Withdrawal force max. 800 Kn

Supporting force in pressing position max. 600 Kn

Die return force max.  40  Kn

Upper punch stroke   220 mm

Upper punch adjusting travel  230 mm

Number of strokes  5-22 1/min

Filling height max. 180 mm

Pressing travel max.  85 mm

Withdrawal travel max. 95 mm

Top pressing travel max 18 mm

Upper punch pneumatic preload max. 80 mm

Compressed air supply , Air consumption , Intake air aprox. 110 l/min

Total connected load aprox. 22,0 Kw

Press dimensions:

Width aprox. 1900 mm

Depth aprox. 1750 mm

Height aprox.  2780 mm

Weight of the press aprox. 11.200 Kg

Oil filling quantity :

Press housing  220 l (gear oil)

Workplace-related sound 78 dB (A)
